Belt grinder for industry with exhaust

ARBOGA 150X

Item number: #471234240

Description

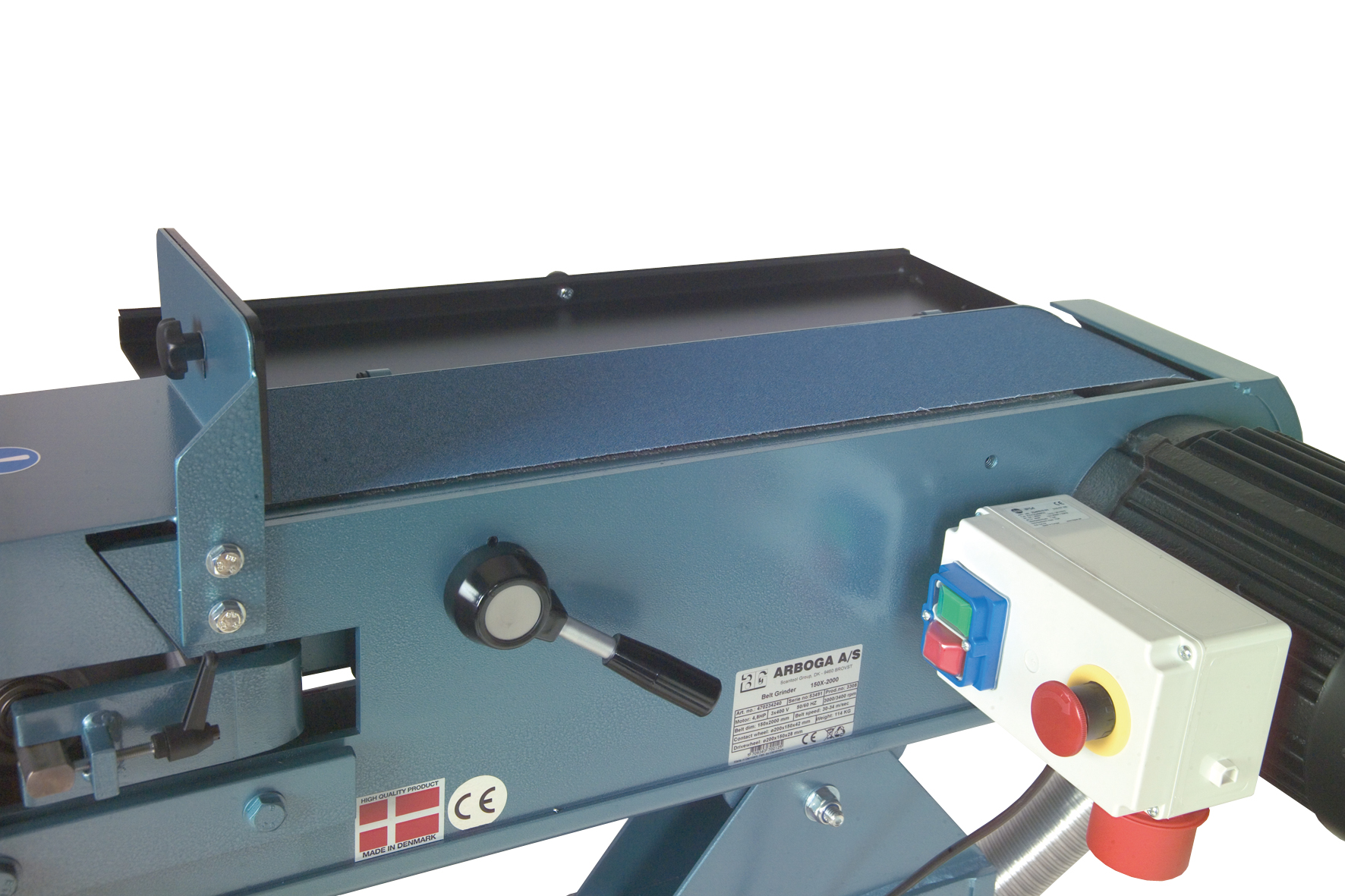

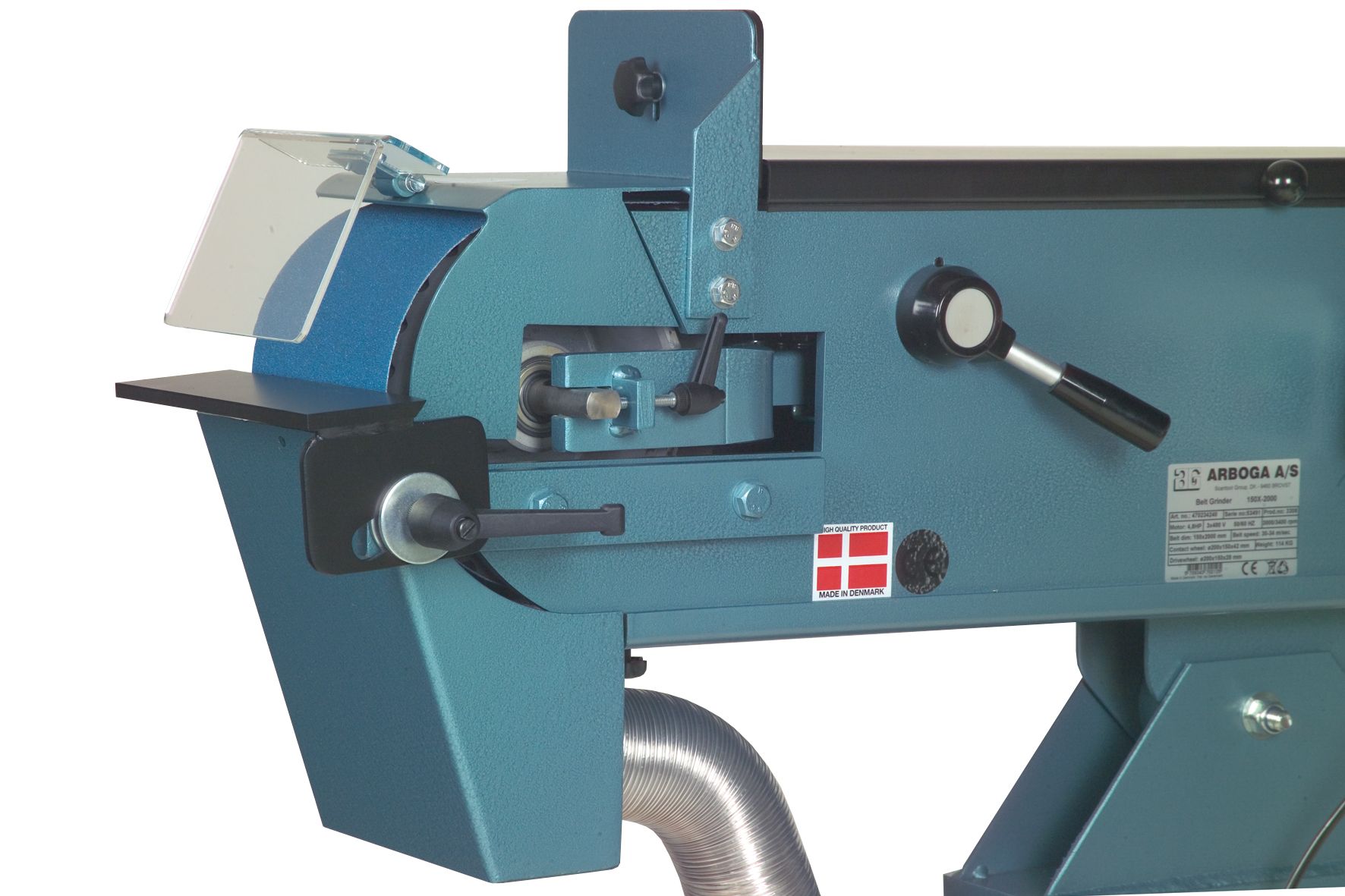

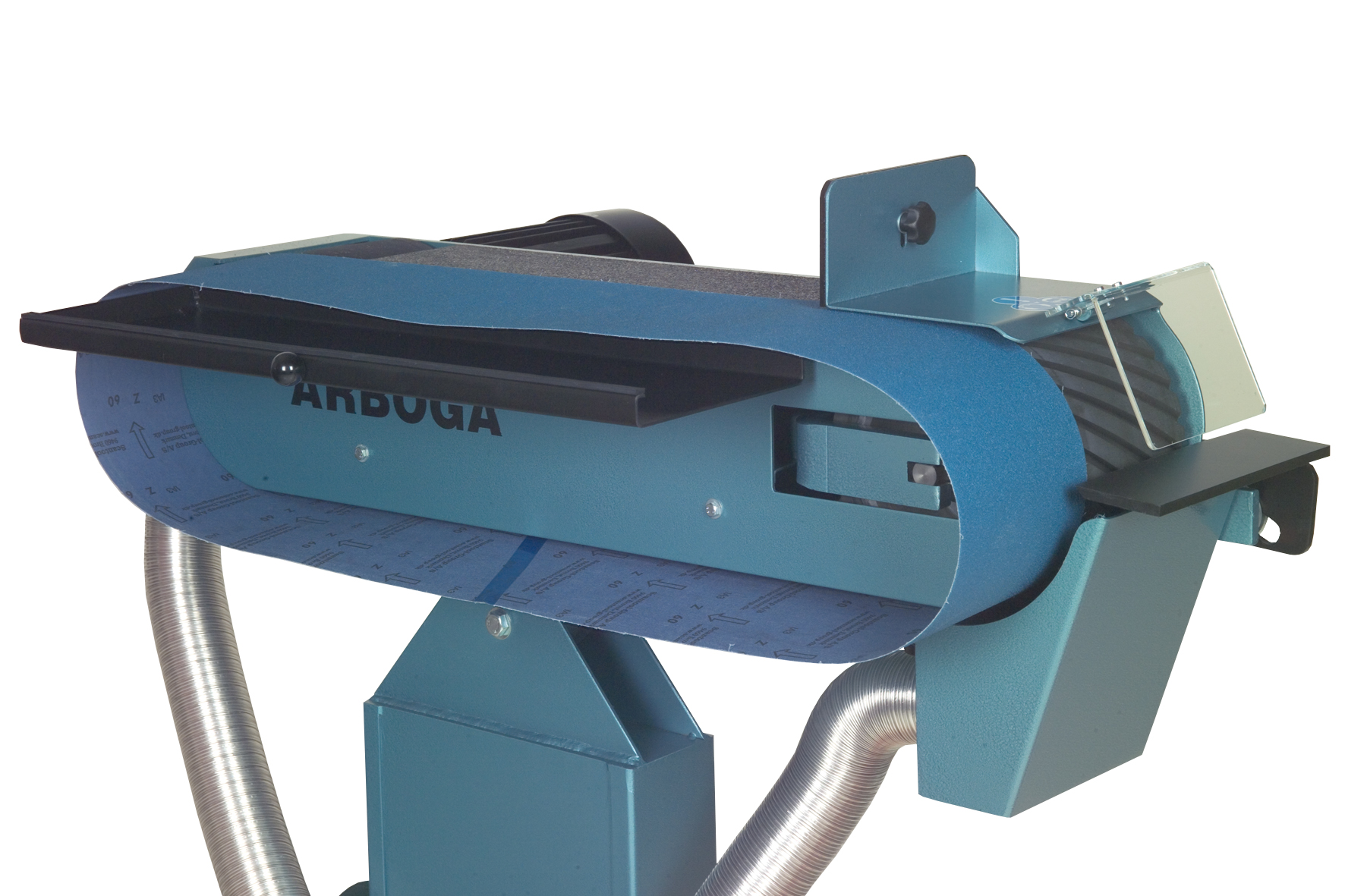

The Belt grinding machine model ARBOGA 150X is an efficient quality machines with built-in double dust extraction system manufactured in accordance with the most strict enviromental- and health and safety regulations.

Standard machines are equipped with a motor brake, separate emergency stop, adjustable emergency stop, adjustable top...
Read More >>

×

Product Specifications

Motor (HP) 4,8
Voltage 3x400V-50 Hz
Grinding table (mm) 150x605
Wheel size, Conctact wheel (ø mm) 200x150x20
Wheel size, Drive wheel (ø mm) 200x150x28
Grinder Belt (mm) 150x2000
Belt speed (m/sec) 34
With exhaust 1
Exhaust (m³/h) 630
Length (mm) 1025
Width (mm) 600
Height (mm) 1000
Net weight (kg) 114
