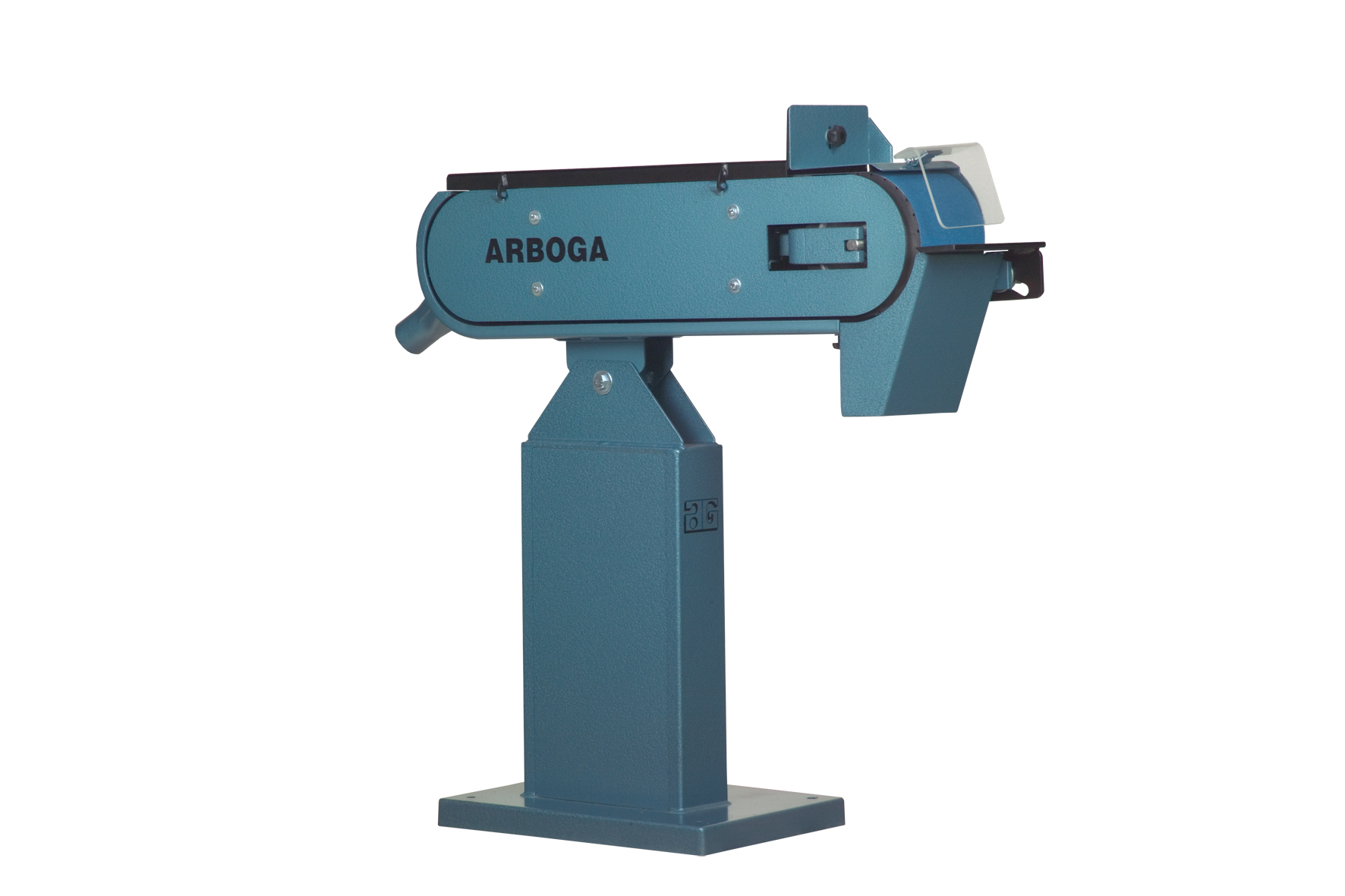

Belt grinder for industry

ARBOGA 150

Item number: #471234140

Description

The Belt grinding machine model ARBOGA 150 is an efficient quality machine manufactured in accordance with the most strict enviromental- and health and safety regulations.

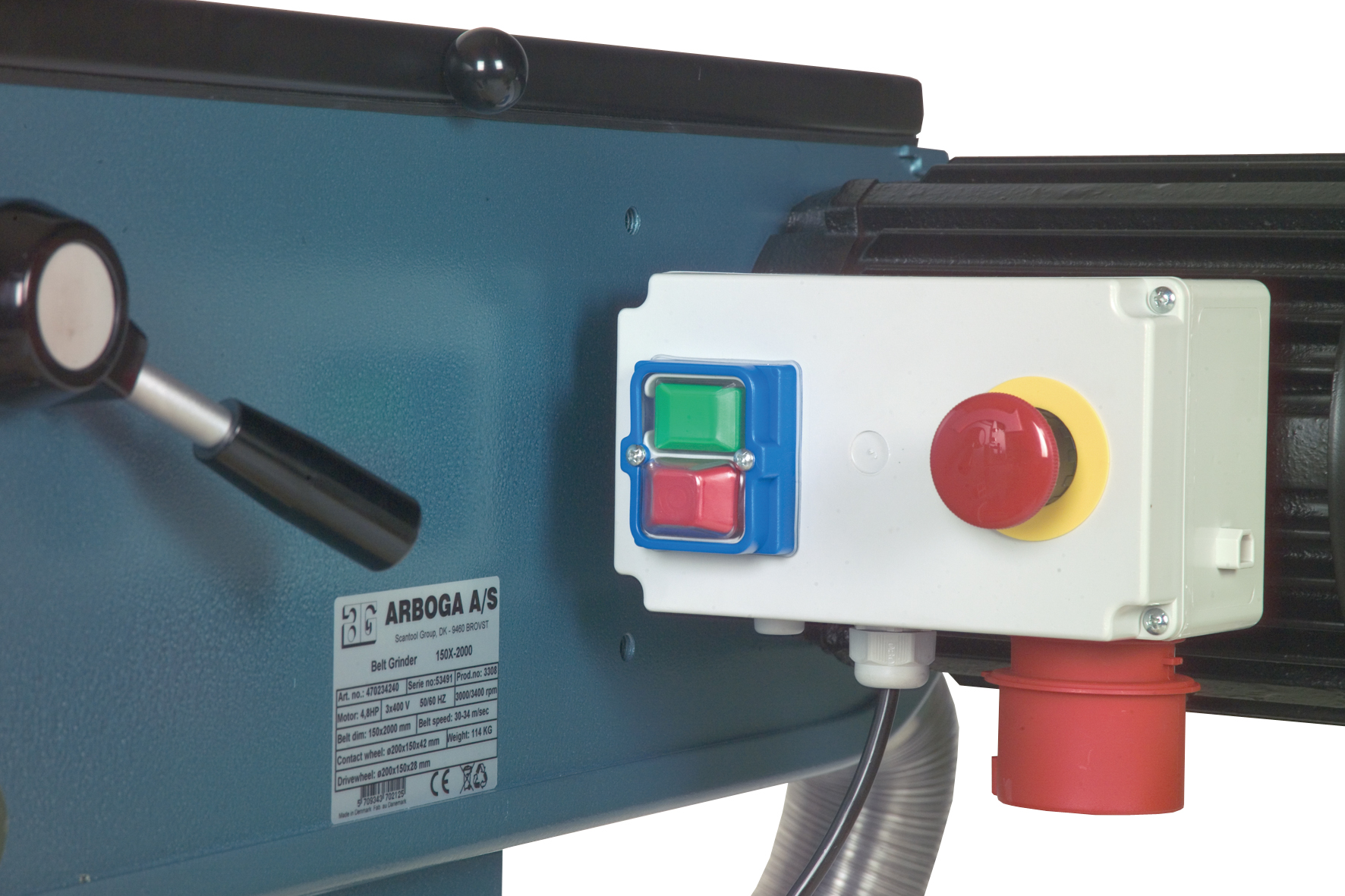

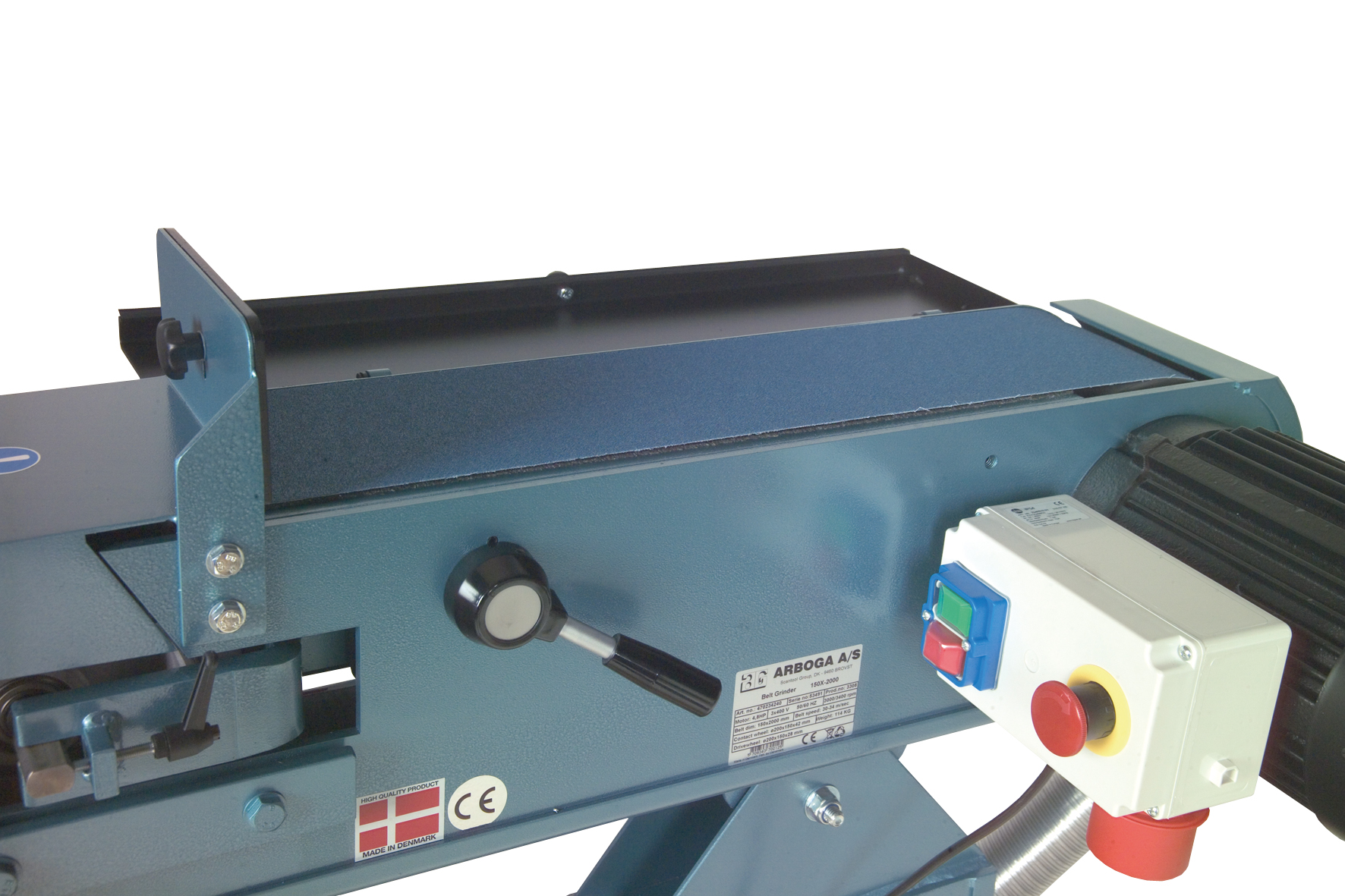

Standard machine is equipped with a motor brake, separate emergency stop, adjustable top work support, eye shield, thermal overload no-volt release starter.

T...
Read More >>

×

Product Specifications

Motor (HP) 4,8
Voltage 3x400V-50 Hz
Grinding table (mm) 150x605
Wheel size, Conctact wheel (ø mm) 200x150x20
Wheel size, Drive wheel (ø mm) 200x150x28
Grinder Belt (mm) 150x2000
Belt speed (m/sec) 34
Without exhaust 1
Length (mm) 1025
Width (mm) 600
Height (mm) 1000
Net weight (kg) 100
