Belt grinder for industry with exhaust

ARBOGA 75X

Item number: #471232230

Description

The Belt grinding machines models ARBOGA 75X are efficient quality machines with built-in double dust extraction system manufactured in accordance with the most strict enviromental- and health and safety regulations.

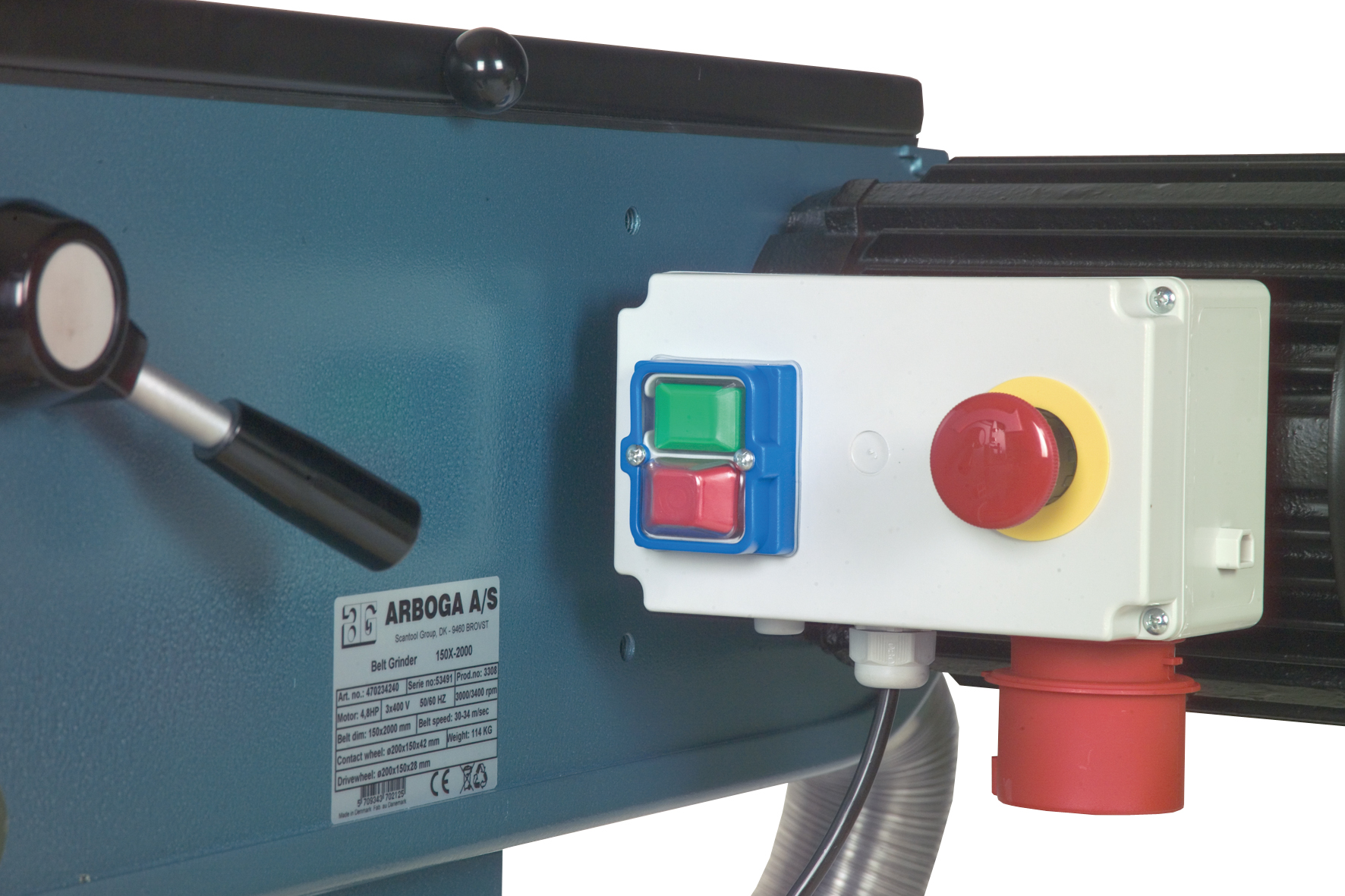

Standard machines are equipped with a motor brake, adjustable emergency stop, adjustable top work support, eye shield, ther...
Read More >>

×

Product Specifications

Motor (HP) 4,1
Voltage 3x400V-50 Hz
Grinding table (mm) 75x605
Wheel size, Conctact wheel (ø mm) 200x75x20
Wheel size, Drive wheel (ø mm) 200x75x24
Grinder Belt (mm) 75x2000
Belt speed (m/sec) 34
With exhaust 1
Exhaust (m³/h) 630
Length (mm) 1025
Width (mm) 500
Height (mm) 1000
Net weight (kg) 90
