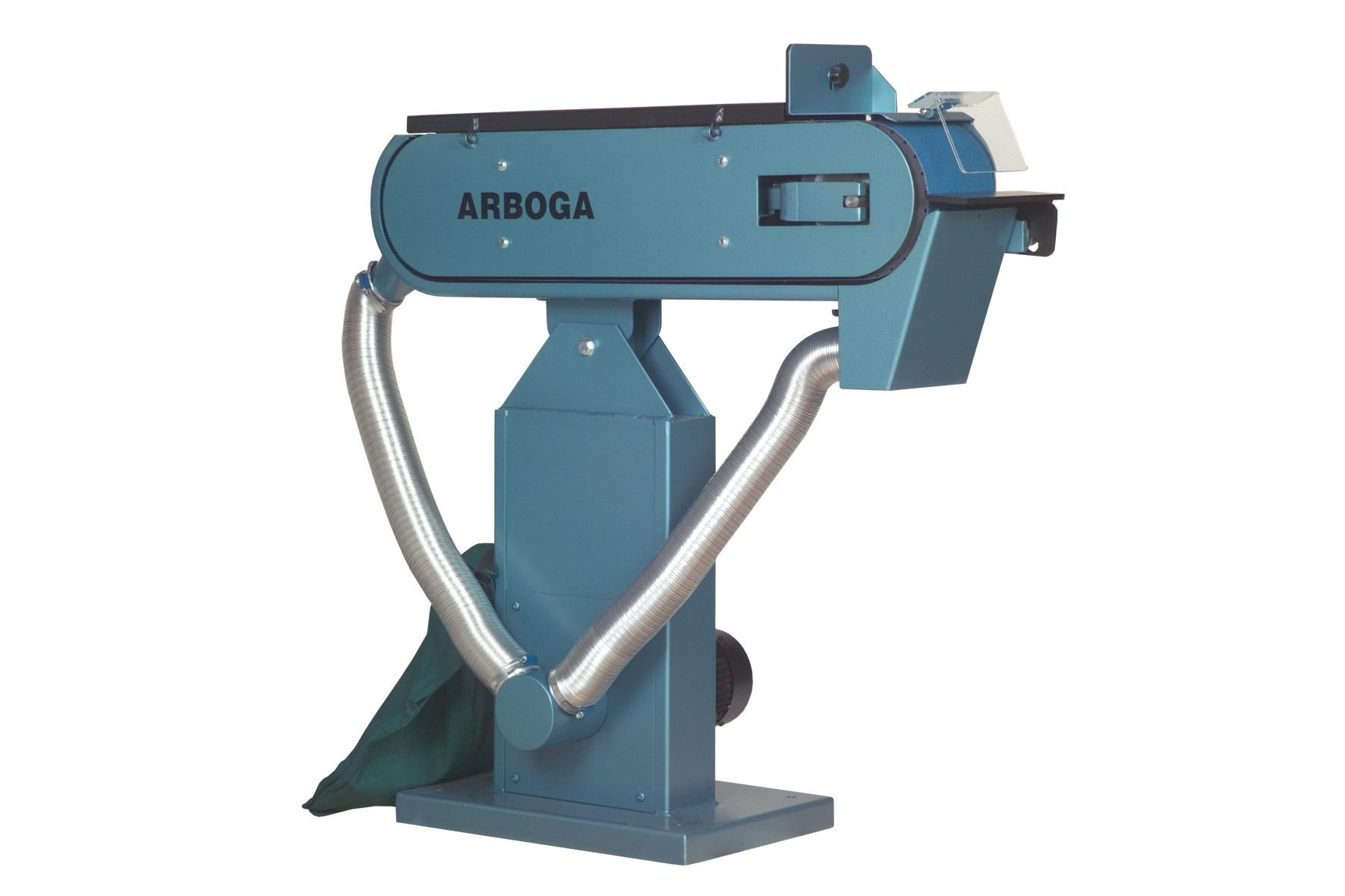

Belt grinder for industry with exhaust

ARBOGA 100X

Item number: #471233240

Description

The Belt grinding machine model ARBOGA 100X is an efficient quality machines with built-in double dust extraction system manufactured in accordance with the most strict enviromental- and health and safety regulations.

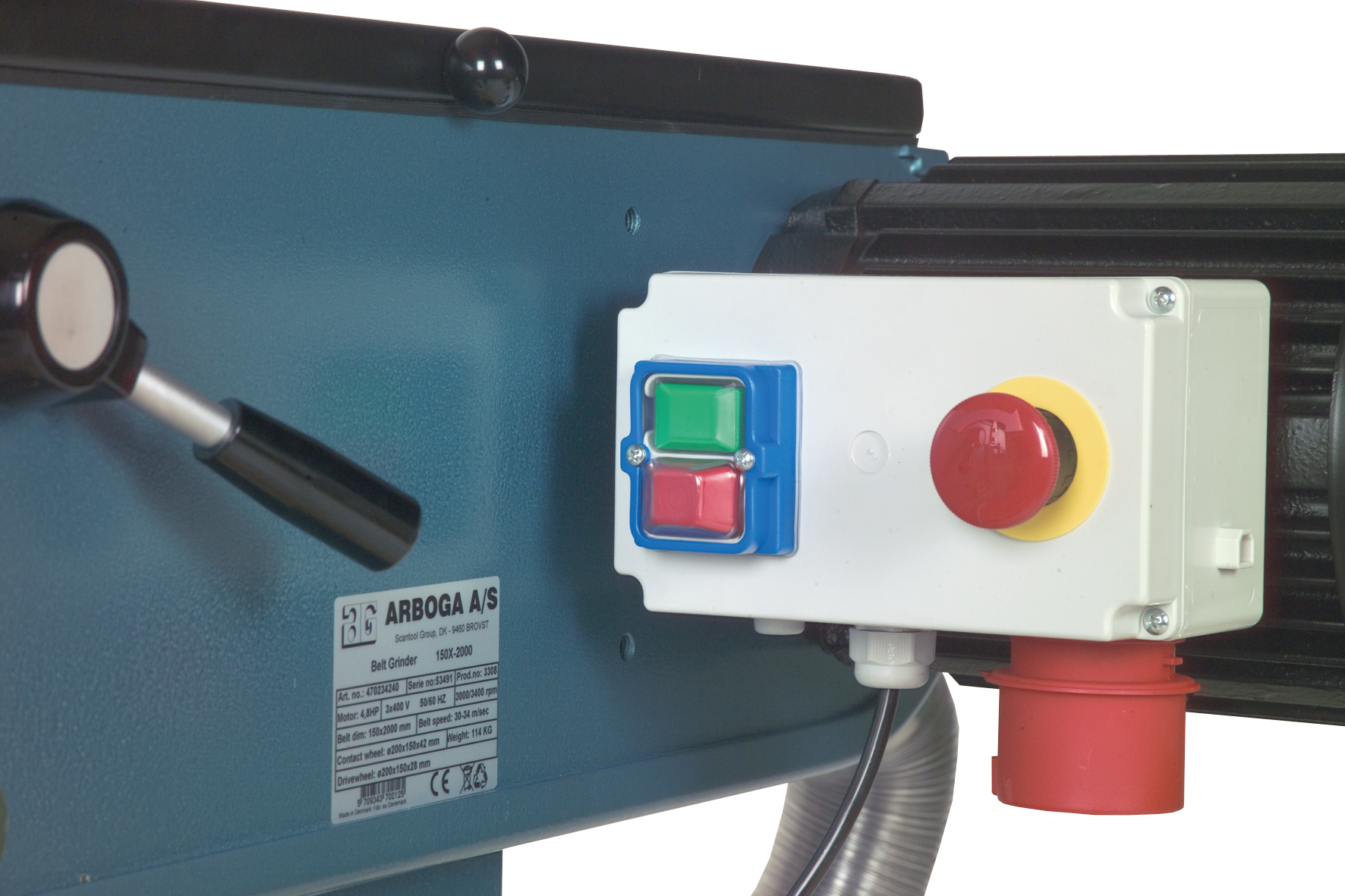

Standard machines are equipped with a motor brake, separate emergency stop, adjustable emergency stop, adjustable top work...
Read More >>

×

Product Specifications

Motor (HP) 4,8
Voltage 3x400V-50 Hz
Grinding table (mm) 100x605
Wheel size, Conctact wheel (ø mm) 200x100x20
Wheel size, Drive wheel (ø mm) 200x100x28
Grinder Belt (mm) 100x2000
Belt speed (m/sec) 34
With exhaust 1
Exhaust (m³/h) 630
Length (mm) 1025
Width (mm) 550
Height (mm) 1000
Net weight (kg) 100
